您当前的位置： 首页>产品中心>永磁变频空压机>APM系列永磁变频螺杆机

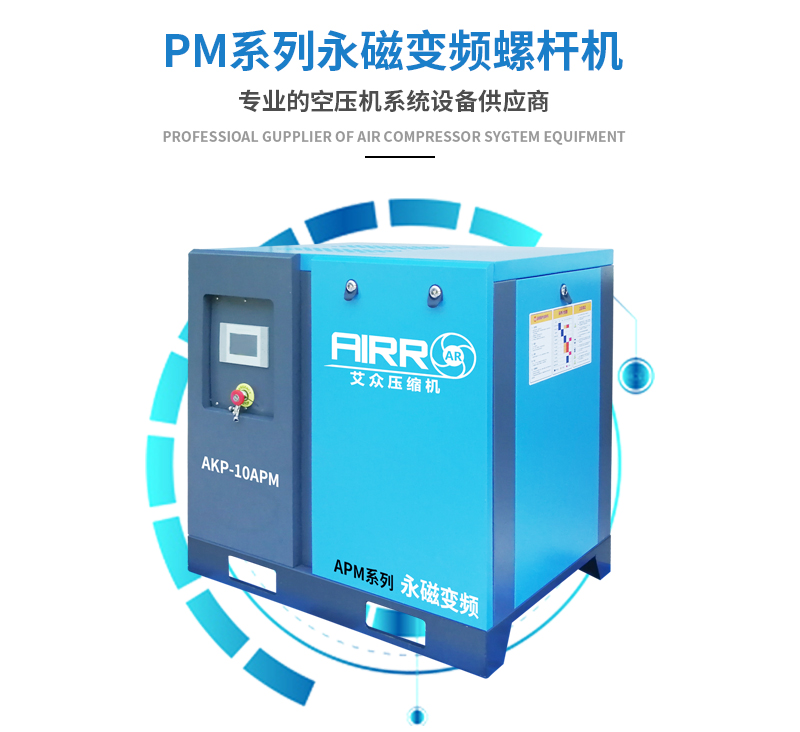

AKP-10APM
| 型号 | 功率 | 排气压力 | 排气量 | 外形尺寸 | 重量 | 排气口管径 |
| kw | Mpa | m³/min | 长*宽*高mm | kg | Inch | |
| AKP-10APM | 7.5 | 0.7 | 1.2 | 800*650*875 | 180 | G3/4 |
| 0.8 | 1.1 | |||||
| 1.0 | 0.95 | |||||
| AKP-10APM | 11 | 0.7 | 1.8 | 1000*740*1100 | 300 | G3/4 |
| 0.8 | 1.6 | |||||
| 1.0 | 1.3 | 1000*750*1000 | ||||
| 1.3 | 1.2 | |||||
| 1.6 | 0.9 | |||||
| AKP-20APM | 15 | 0.7 | 2.6 | 1070*840*1260 | 320 | G3/4 |
| 0.8 | 2.2 | |||||
| 1.0 | 1.8 | |||||
| 1.3 | 1.2 | 1000*750*1000 | ||||
| 1.6 | 1.2 | |||||
| AKP-30APM | 22 | 0.7 | 4.4 | 1200*1000*1390 | 420 | G1 |
| 0.8 | 3.6 | |||||
| 1.0 | 3.0 | |||||
| 1.3 | 2.9 | 1300*850*1150 | ||||
| 1.6 | 1.8 | |||||
| AKP-40APM | 30 | 0.7 | 6.0 | 1070*850*1140 | 450 | G1 |
| 0.8 | 5.0 | |||||
| 1.0 | 4.4 | |||||
| AKP-50APM | 37 | 0.7 | 7.3 | 1070*850*1140 | 600 | G1 1/2 |
| 0.8 | 6.4 | |||||
| 1.0 | 5.4 | |||||
| 1.3 | 5.1 | 1200*1000*1380 | ||||
| 1.6 | 2.8 | |||||
| AKP-60APM | 45 | 0.7 | 9.4 | 1350*1000*1390 | 700 | G1 1/2 |
| 0.8 | 8.0 | |||||
| 1.0 | 6.8 | |||||
| AKP-75APM | 55 | 0.7 | 11.0 | 1700*1200*1550 | 920 | G2 |
| 0.8 | 9.7 | |||||
| 1.0 | 8.6 | |||||
| AKP-100APM | 75 | 0.7 | 15.4 | 1700*1200*1550 | 950 | G2 |
| 0.8 | 13.2 | |||||
| 1.0 | 11.6 |
